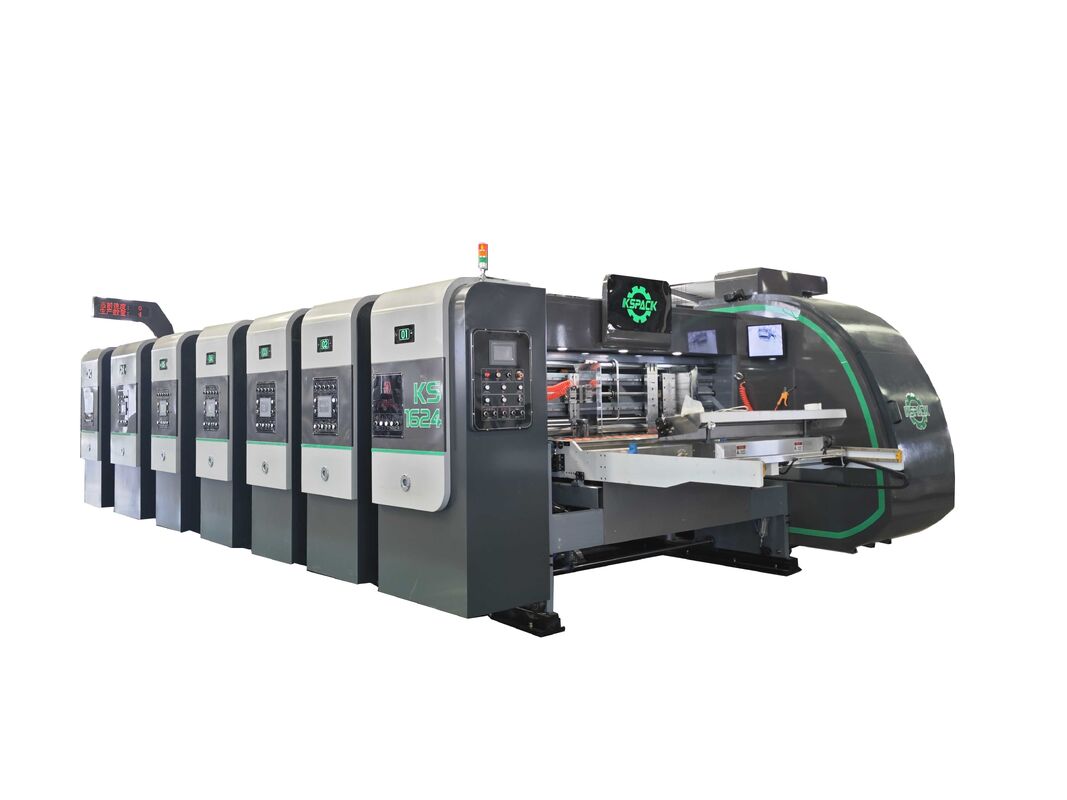

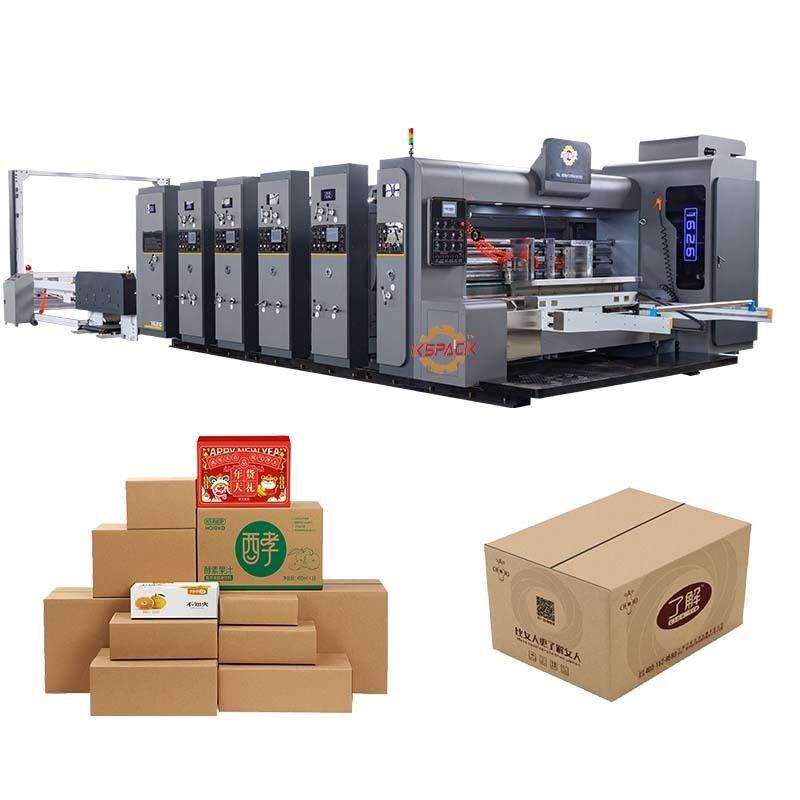

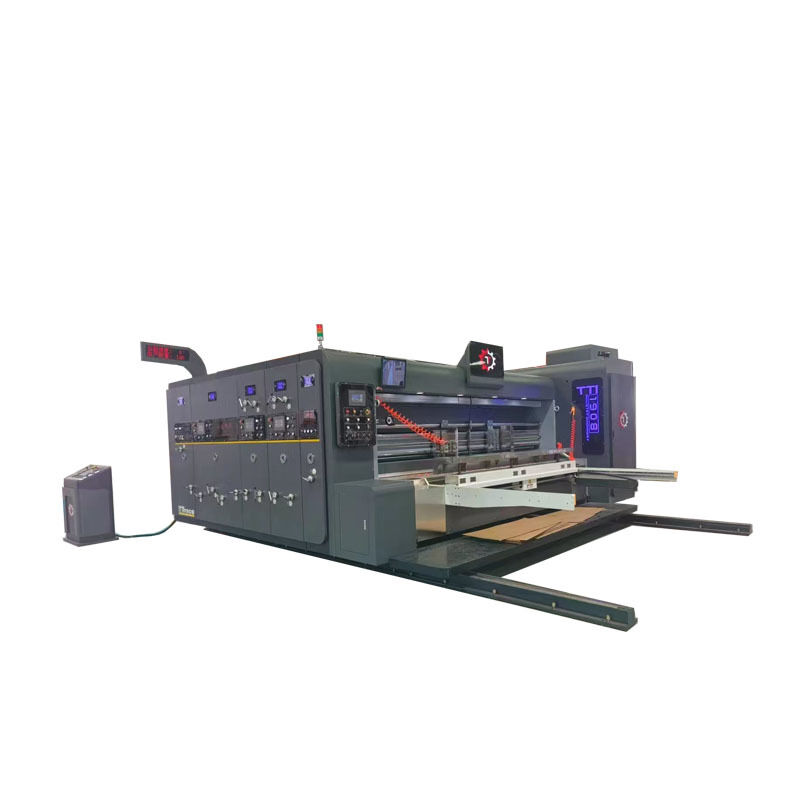

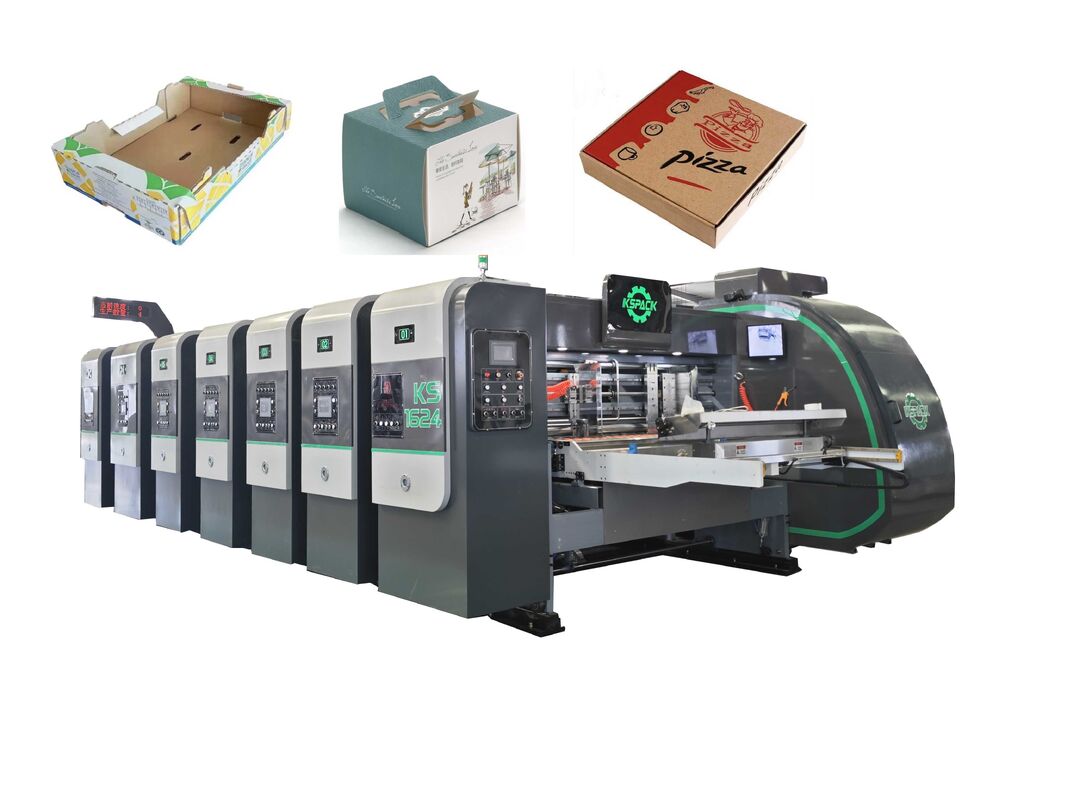

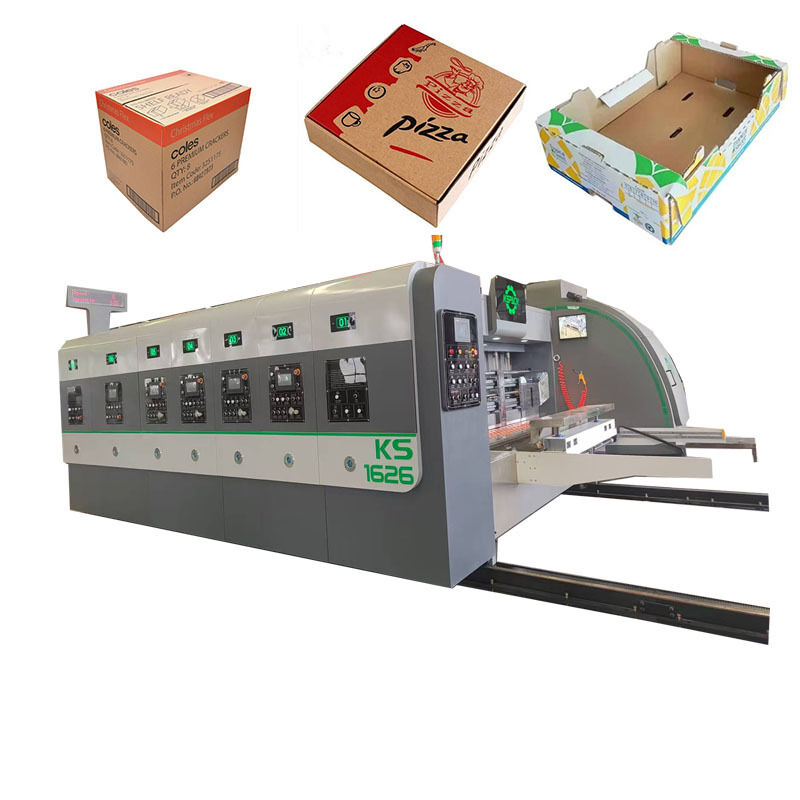

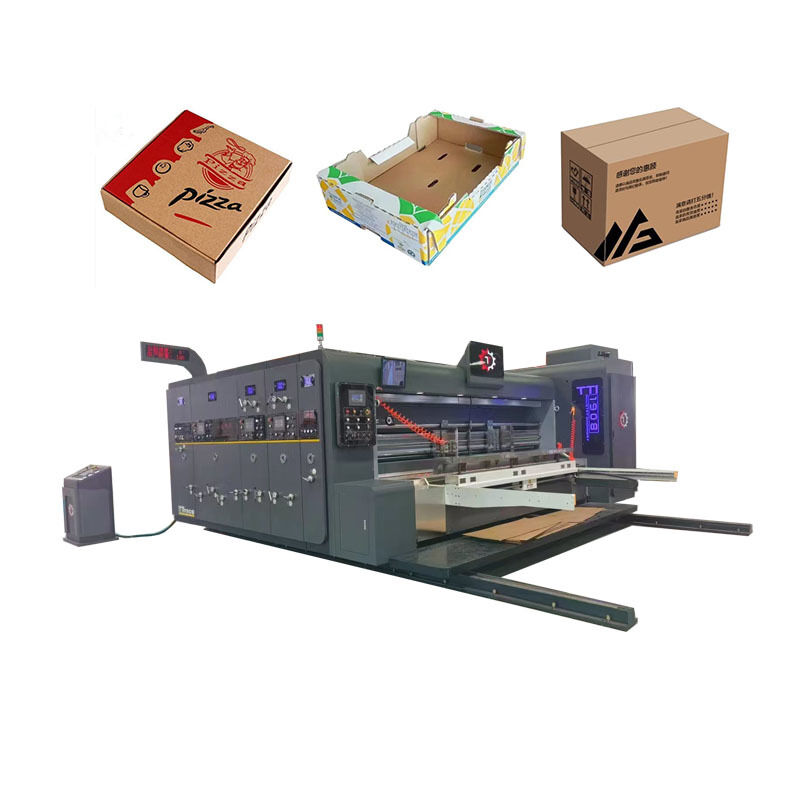

Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine
-
Vurgulamak
automatic corrugated box printing machine
,flexo printing and slotter machine
,fruit pizza box die cutting machine
-
Ürün adıFlekso baskı ve slotter kalıp kesme karton kutu makinesi
-
Renkler1~5 renk
-
Baskı malzemesiOluklu mukavva
-
Anahtar kelimelerKarton Kutu Yapma Makinesi
-
önemli satış noktaları500VRMS*
-
Makine voltajıOEM / DOM
-
Slotter bıçağı ayarıPLC kontrolü
-
Plaka TipiFlekso Klişe yazıcı
-
Besleyici ModeliKurşun kenarı besleme
-
StilVakum stili
-
ÖzellikRahat Kullanım
-
otomatik dereceOtomatik
-
Menşe yeriHeibei, Çin
-
Marka adıkspack
-
SertifikaCE
-
Min sipariş miktarı1
-
Ambalaj bilgilerikonteyner
-
Teslim süresi45 gün içinde
-
Ödeme koşullarıL/C,D/P,T/T,Western Union
-
Yetenek temini10 takım/ay
Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine
Flexo Printing and Slotter Machine - Automatic Corrugated Fruit Pizza Box Production
High-performance automatic flexo printing and slotter machine designed for efficient corrugated fruit and pizza box manufacturing. This PLC-controlled system integrates printing, die-cutting, and slotting operations in one streamlined process.
Technical Specifications
| Model | PLC Control High Speed Printer Diecutter |
|---|---|
| Printer Color | Multi Color |
| Machine Size | Wall Board to Wall Board Size: 2000/2200/2400/2600/2800/3000mm |
| Design Speed | 300 pieces/minute |
| Work Speed | 250 pieces/minute |
| Machine Wall Board Size | 60mm |
| Gear Thickness | 60mm |
| Max Passing Paper Size | 1200 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter 1450 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter 1600 × (1800/2000/2200/2400/2600/2800mm) for 530 diameter |
| Min Paper Passing Size | 420 × 860mm (for 480 diameter) 380 × 860mm (for 408 diameter) |
| Skip Paper Size | 1350 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter 1600 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter |
| Max Print Size | 1200/1400 × 1600 (1600/1800/2000/2200/2400/2600mm) |
| Plate Thickness | 3.2 - 7.2mm |
| Board Thickness | 3 - 12mm |
| Print & Slot Accuracy | Print: ±0.5mm / Slot Open Accuracy: ±1.5mm |
Our Service
Comprehensive support including installation, training, maintenance, and technical assistance to ensure optimal machine performance and productivity.
